Product overview
We provide high quality foot mounted gearboxes which are used for industrial applications which require a high power drive.

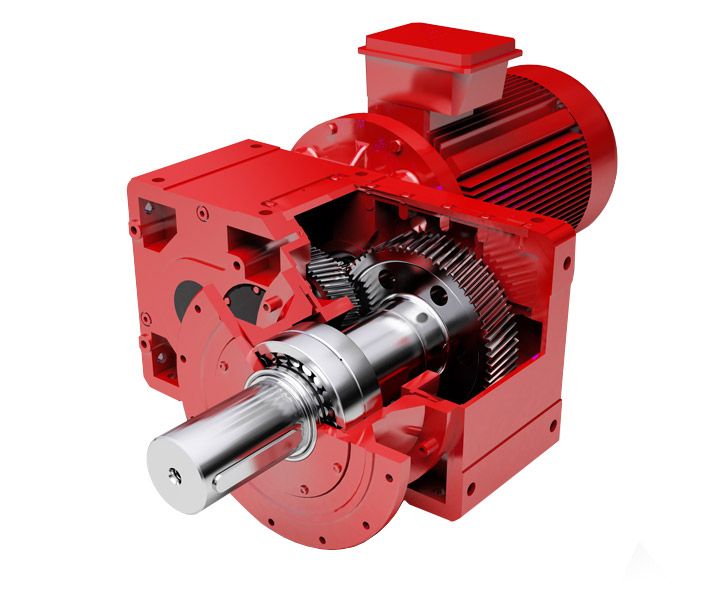

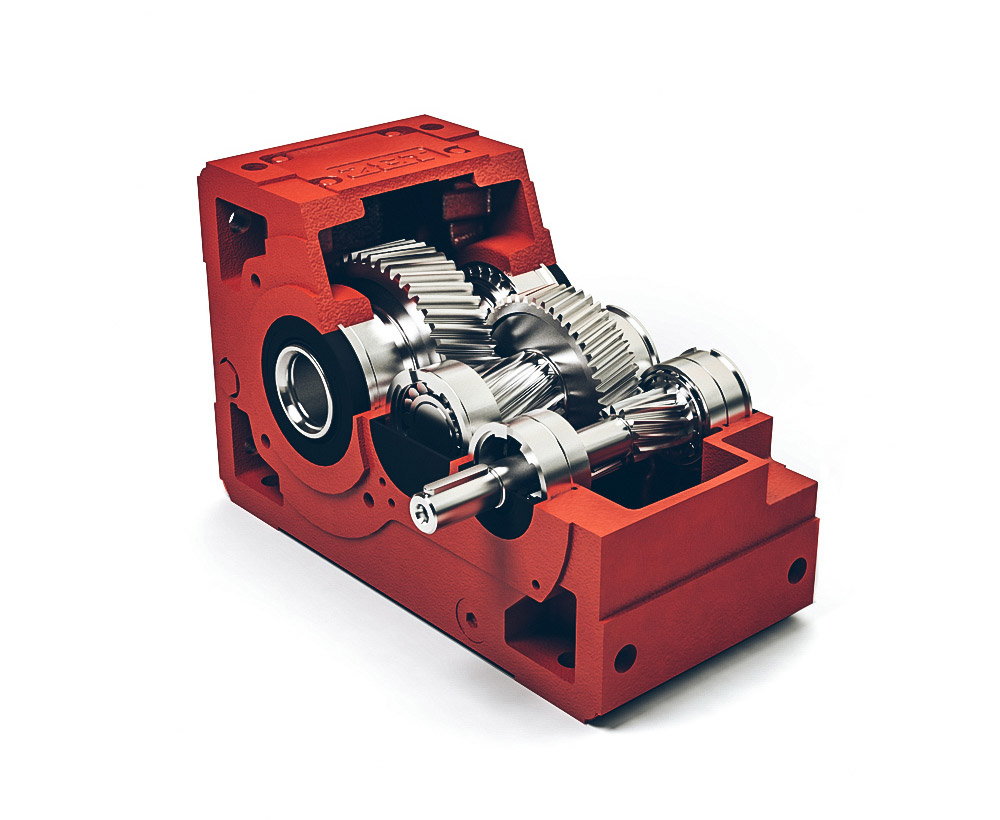

These parallel shaft gearboxes are manufactured from world-renowned specialists such as ZET. The newest product available from the ZET gearbox range boasts a rigid MonoBlock body and impeccably strong structure to provide excellent endurance levels and high running performance. Compactly designed, its universal cast iron housing offers mounting flexibility.
| PARALLEL SHAFT GEARBOX RANGE | |
|---|---|
| MonoBlock Parallel Shaft Gearboxes | Ratios ranging from 2:47 to 122, with special ratios available on request |
| < 70,000Nm torque capacity | |
| 30 – 180mm output shaft diameters | |
| Suitable for standard IEC motors | |
| Can be supplied complete with IEC motor | |
| Extruder design, heavy duty bearings and backstop device variations available | |
| Bespoke Parallel Shaft Gear Unit | Designed and manufactured to suit customer specification |
Product advantages
- Ultimate high-power capacities
- Robust case-hardened ground gearing, housed in rigid cast iron
- Exclusively available in an optional right-angled bevel helical design
- Extruder option design available for high-thrust load outputs
Sectors
Product applications
- Extruder drives
- Fan drives
- Pumps & compressors
- Generators
- Mixers
- Conveyors
